        Product Introduction
        Observation  elements: horizontal total radiation, inclined total radiation, reflected radiation, surface albedo, etc.
        ZTP series ISO9060 Class A thermopile type total radiometer, used to measure the hemispherical solar radiation intensity in the wavelength range of 280-3000nm, the product response time is short, suitable for sunny, cloudy and other weather types of radiation measurement. The product is suitable for scientific research, meteorological monitoring network, solar energy monitoring of photovoltaic power stations and radiation measurement in harsh environments with high requirements for accuracy and stability.

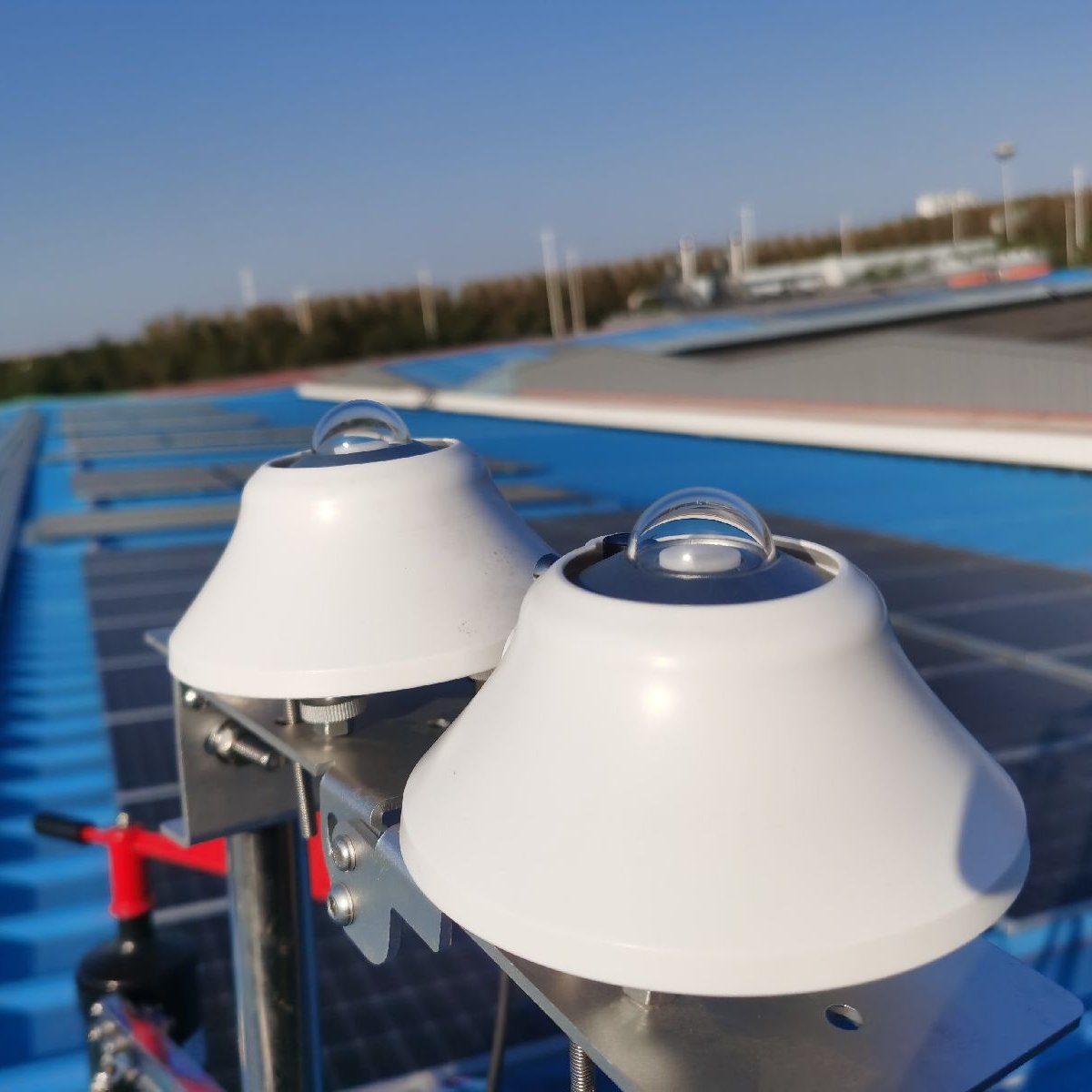

        Product Photograph



        Product testing and inspection



        Application Area
        Meteorological  observation, environment, agriculture, forestry and animal husbandry, aging of building materials;
        Solar  energy field exploration, production prediction simulation, power station operation and maintenance, etc. in photovoltaic industry;
        Teaching and Science and Research.&  nbsp;
        Main technical parameters


    Model ZTP Series ISO9060-2018
    standard
    Deviations
    Measuring range 0-4000 W/m² - -
    Grade/ISO 9060 Class A Class A Meet the standard
    Response time
    (95%)
    < 0.5s < 10s Better than standard
    Zero offset A
    (200W/m²)
    < 1W/m² < 7W/m² Better than standard
    Zero offset B
    (5K/hr)
    < 1W/m² < 2W/m² Better than standard
    Of unstable < 0.5%/3-5year < 0.8%/year Better than standard
    Non-linear error
    (1000W/m²)
    < 0.2% < 0.5% Better than standard
    Direction response
    (1000W/m²)
    < 10W/m² < 10W/m² Meet the standard
    Temperature response
    (@50℃)
    < 1% < 1% Meet the standard
    Tilt response
    (1000W/m²)
    < 0.2% < 0.5% Better than standard
    Spectral error 0.5% 0.5% Meet the standard
    Sensitivity 7-20 V/W/m² - -
    Spectral region 280-3000nm - -
    Output 0-50mV - -
    Protection class and operating environment IP67
    -40℃-+80°C
    0-100%RH
     -  -
