    Model:
    ZTW-8
    Measurement parameters:
    Total radiation
        Product Introduction

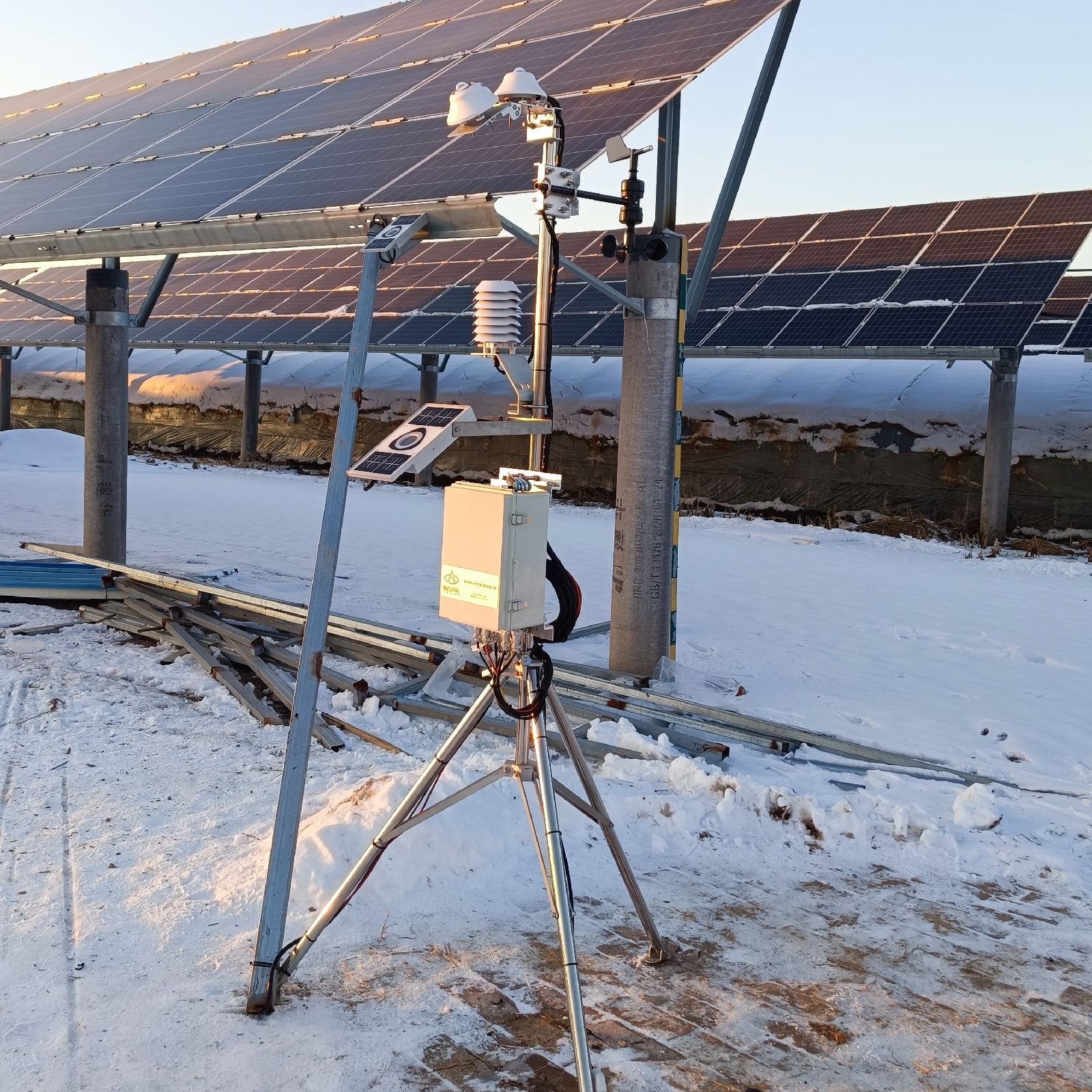

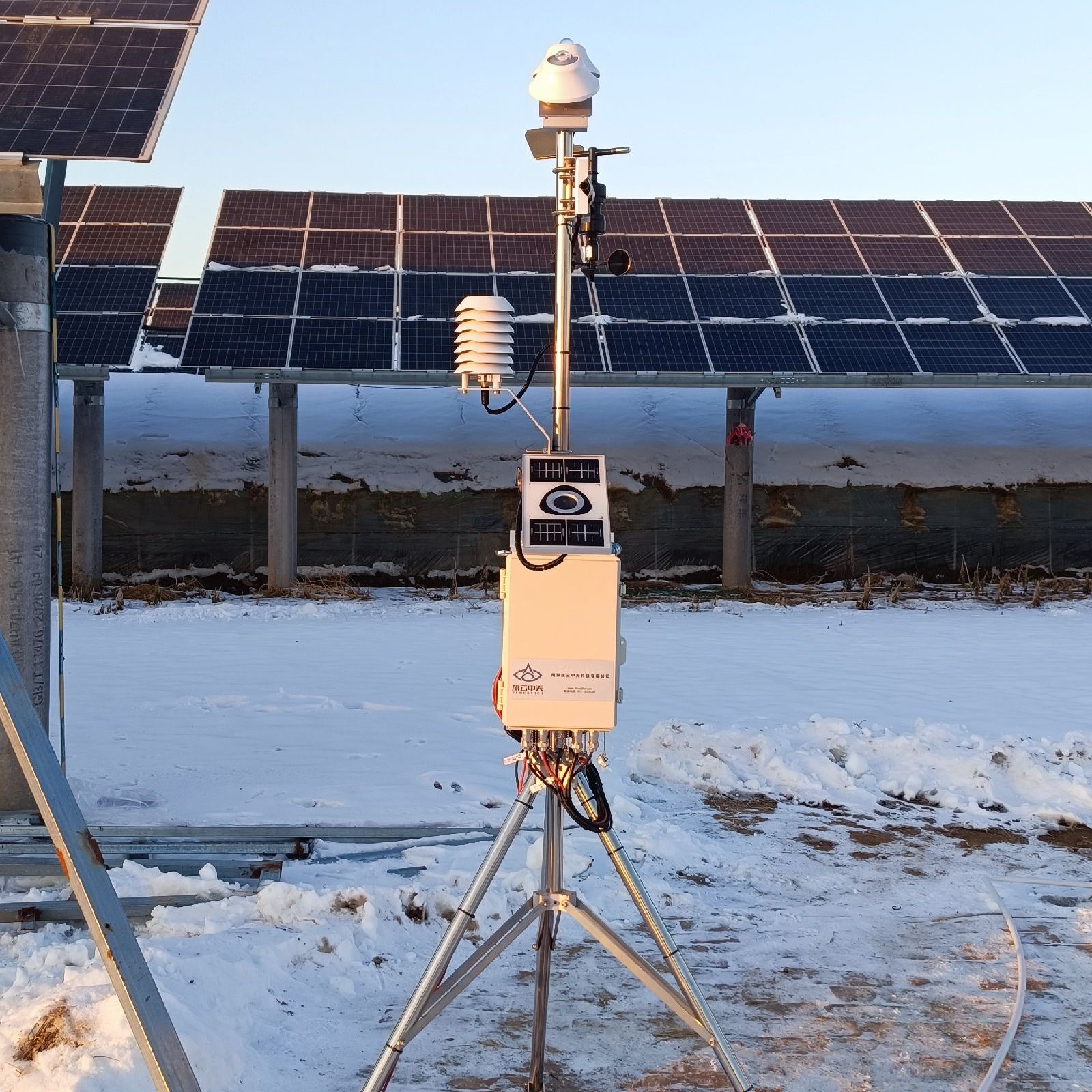

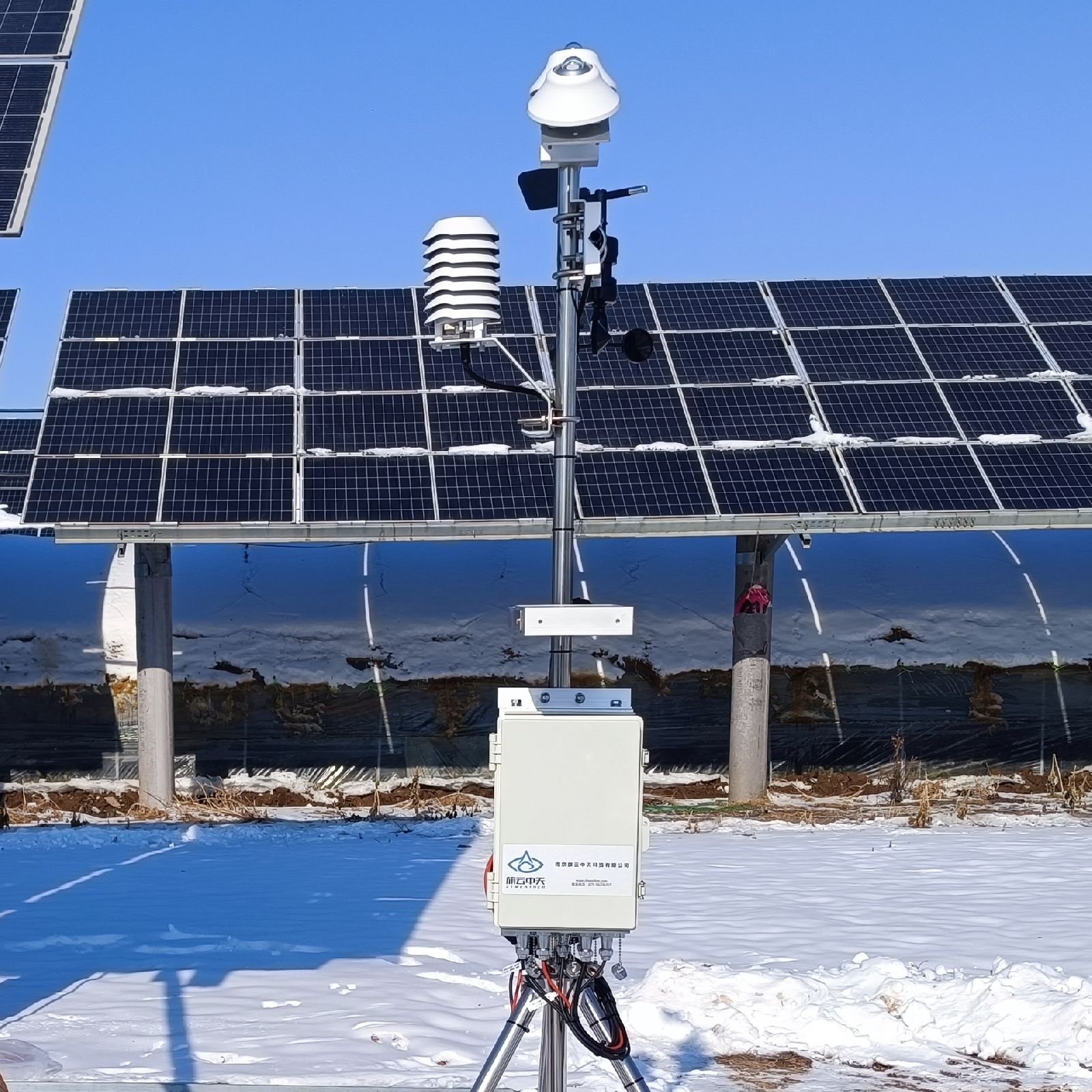

        ZTW-8 high-precision photovoltaic environmental monitoring system adopts intelligent control integrated design, integrating weather sensing, data acquisition, 4G communication, data encryption, local data storage and cloud storage to ensure data security, stability and effectiveness. Users can obtain data and related services in real time through dedicated software. It is an Internet of Things weather station specially tailored for photovoltaic power stations.
        The measurement elements include: horizontal total radiation, inclined total radiation, back plate temperature, ash deposition loss, wind speed, wind direction, temperature, humidity, air pressure, etc., meeting the weather-related production and application services such as resource evaluation, investment calculation, power forecast, operation maintenance, power transaction, etc. of most photovoltaic power stations. The products are also suitable for scientific research, meteorological/environmental monitoring networks, weather measurement in harsh environments, etc., which require high accuracy and stability.
        Product Feature
        Measurement  accuracy: high precision, reliable and stable performance;
        High  integration: data acquisition, wired/wireless data transmission in one;
        Data  security: local data storage and cloud storage optional;
        Efficient  and convenient: real-time viewing of live and forecast through mobile APP or API;
        Installation and maintenance: convenient operation and easy maintenance.
        Main Technical Parameters
    Model Name Describe Model Name Describe
    ZTP Series Horizontal/inclined total radiometer Measurement range:
    0-4000 W/m²
    Class/ISO 9060:
    Secondary Datum (Class A)
    Response time (95%):
    < 0.5s
    Zero offset A (200W/m ²):
    < 1W/m²
    Zero Offset B (5K/hr):
    < 1W/m²
    Instability:
    < 0.5%/3-5year
    Nonlinear error (1000W/m ²):< 0.2%
    Directional response (1000W/m ²):
    < 10W/m²
    Temperature response (@40℃):
    < 1%
    ZTD Series dust sensor Measurement principle:
    light scattering principle
    contamination ratio measurement accuracy
    90%-100%:1%
    80%-90%: 2%
    50%-80%: 4%
    Measurement stability:
    1%/year
    Newsletters:
    RS485 Modbus, 4G (optional)
    Power supply:
    DC 8-24V@<2W
    Working environment:
    -40℃-+85℃,
    0-100%RH
    Size: 252mm× 137mm× 35mm,
    1.3kg
    ZTWind Wind direction sensor Wind speed measurement range:
    0~75m/s
    Accuracy:
    ±0.1m/s
    Wind direction measurement range:
    0~360°
    Accuracy:± 3°
    PVT Component temperature sensor Measurement range:
    -55℃- +125℃
    Precision:
    ±0.1°C
    (-55° to +70°C)
    ZTDL1X Data acquisition unit Data acquisition unit (11 inputs (3 digital, 4 analog, 4 PT100 temperature) and 2 485 digital outputs, expandable), outdoor protective box, surge protection power supply unit ZTE-3 Ambient temperature, humidity, pressure sensors Temperature measurement range:
    -40℃-+85C;
    Measurement accuracy:
    ±0.2℃;
    Humidity measurement range:
    0-100%RH;
    Measurement accuracy:
    ±1.8%RH;
    Atmospheric pressure measurement range:
    300-1200hPa;
    Measurement accuracy:
    ±0.3hPa
    cylindrical sensor
    (Outer cover radiation shield)
