• Product Description
    Company Info.
    Brand:
    ZTWEATHER
    Model:
    ZTP-11
    Measurement parameters:
    Total radiation
    Overview
    The ZTP-11 pyranometer is a thermopile radiometer designed for measuring hemisphere short-wave irradiance on earth surface (Radiant flux, W/m2) above the instrument. It meets ISO9060: 2018 “Fast response and spectrally flat pyranometer with class A” standard and traceable to World Radiometric Reference (WRR) at World Radiation Center (WRC).
    The pyranometer is suitable for scientific research that requires high precision and stability, meteorology monitoring, and power prediction in photovoltaic power plants et al.
    Figure 1. Photo of ZTP-11 Pyranometers.
    Features
    Fast response time (<0.5s@95%);
    Non-stability <0.5%/5year;
    Cost effective.
    Applications
    Thermopile pyranometers are frequently used in meteorology, climatology, climate change research, building engineering physics and in photovoltaic systems.
    They are usually installed horizontally in meteorological stations and typically mounted in the ‘plane of array’ (with the sensor surface parallel to the solar panel) when used for monitoring of photovoltaic systems. For the solar energy industry, the ZTP-11 pyranometer meet the IEC 61724-1:2021 Class A standard.
    Technical Data
      ZTP-11 ISO9060-2018: Class A
    Measuring principle thermopile -
    Measurement range 0~4000 W/m² -
    Response time (95%) < 0.5s < 10s
    Zero offset A (200W/m²) < 2W/m² < 7W/m²
    Zero offset B (5K/hr) < 2W/m² < 2W/m²
    Total zero offset < 2W/m² < 10W/m²
    Non-stability < 0.5%/5year < 0.8%/year
    Nonlinearity (1000W/m²) < 0.2% < 0.5%
    Directional response (1000W/m²) < 10W/m² < 10W/m²
    Temperature response (-10 to +40°C) < 1% < 1%
    Tilt response (1000W/m²) < 0.2% < 0.5%
    Spectral error 0.5% 0.5%
    Sensitivity 7 to 20µV/W/m² NA
    Wavelength range 285~3000nm -
    Operating/storage temperature range -40 to +80°C -
    Humidity range (non-condensing) 0 to 100 % RH -
    Ingress Protection (IP) IP67 -
    Dimension Φ 118mm×H82mm -
    Weight ~289g -

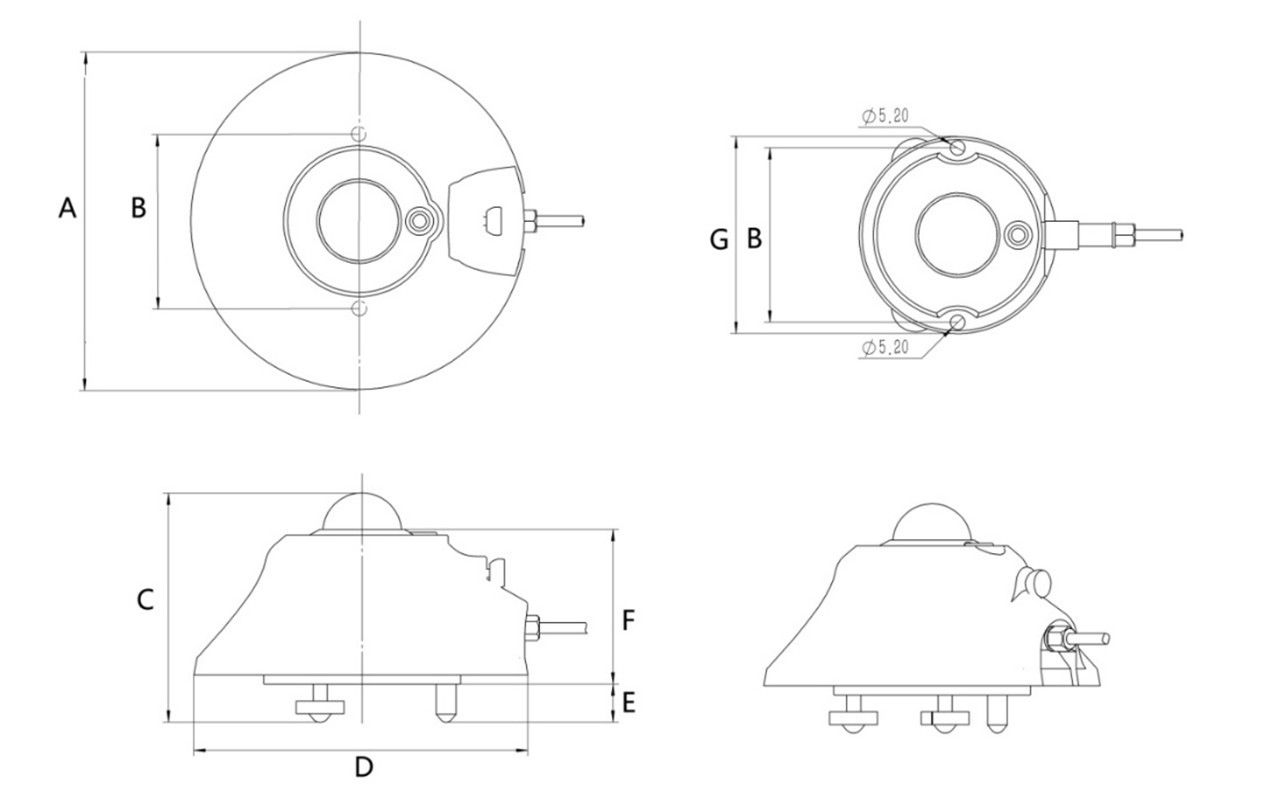

    Dimensions


    Item Dimensions (mm) Description
    A 120 Sun Shield Diameter
    B 62 Fixing Hole Pitch, Hole Diameter 5.20mm
    C 81.5 Overall Height
    D 118 Minimum Size of Sun Shield Skirt Edge
    E 13.5 Height of Level Feet
    F 55 Body Height
    G 70 Body Bottom Diameter
